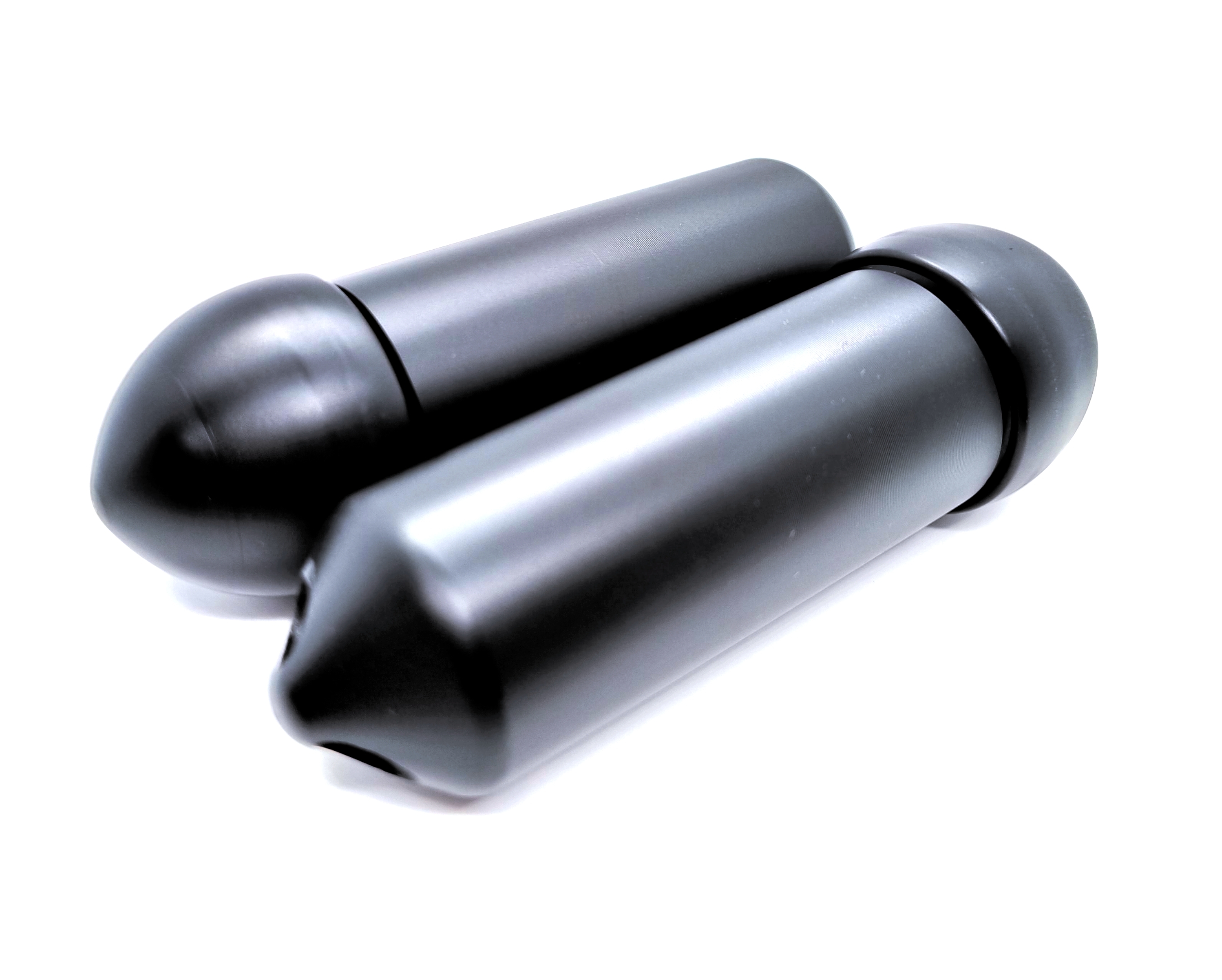

Developed and designed by Karl OscarDelta the EBUTOG is an advanced storage device for small items that you would like to protect from damage,
loss, or unauthorised access.Its primary function as a security device is delivered through relocating sensitive and valuable assets from the usual locations;
to a safer, hidden location.
Tube Specification:
- Machined from a solid rod of engineering thermoplastic
- Wide operating temperature range (-40°C to 120°C)
- High strength
- Low friction
- Chemical resistant
- Internal dimensions 20mm x 65mm
- Lanyard hole
- Ergonomic shape
- No hard edges
- 100% non-metallic
- Undetectable with hand-held/walk-through metal detectors
- Sterile no markings/stamps
- Matt black

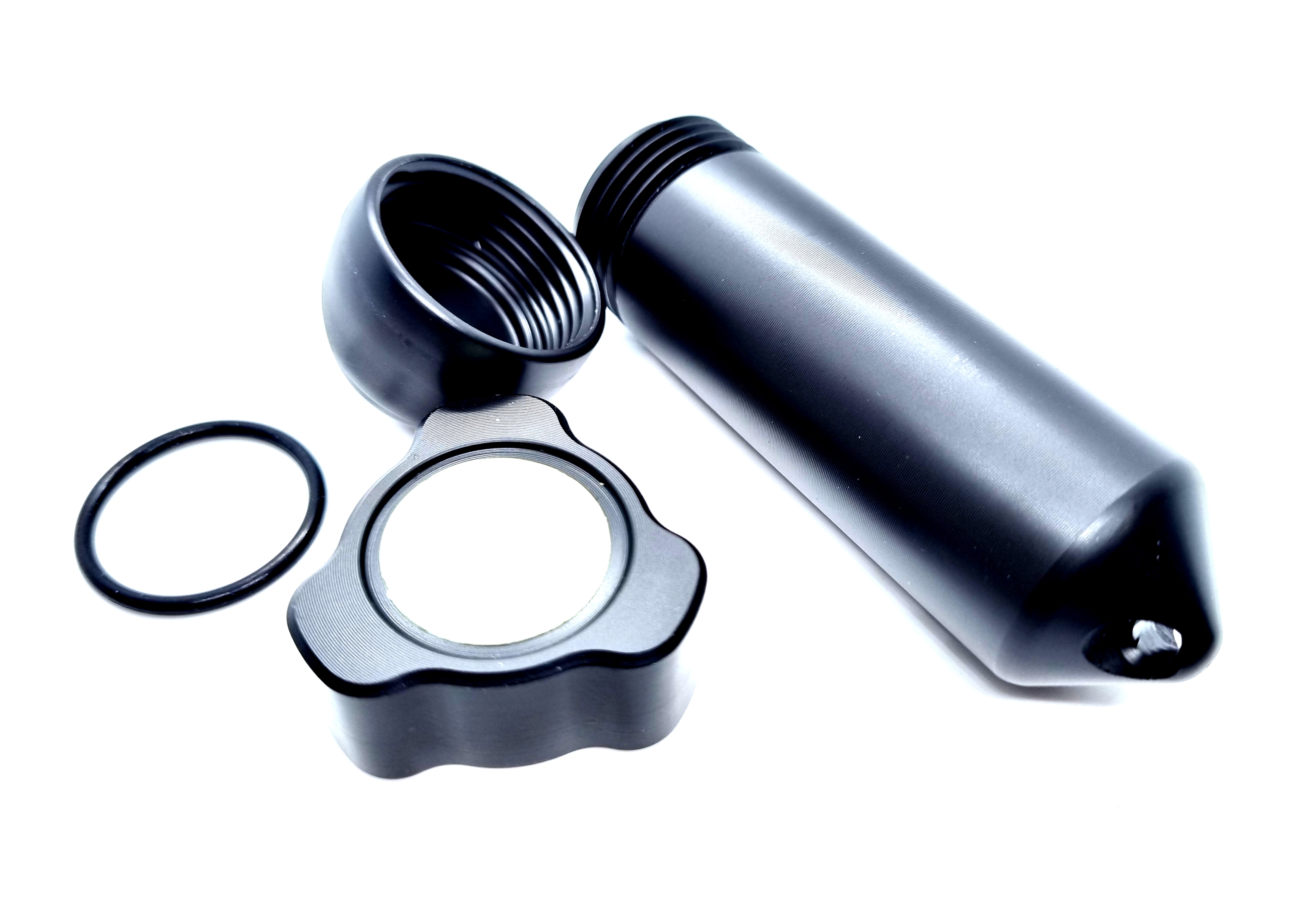

Flat Cap Specification:
- Machined from a solid rod of engineering thermoplastic
- Wide operating temperature range (-40°C to 120°C)
- High strength
- Low friction
- Chemical resistant
- Screw cap for a watertight/airtight seal
- Unique design for single-handed use
- Anti-roll
- No hard edges
- 100% non-metallic
- Undetectable with hand-held/walk-through metal detectors
- Sterile no markings/stamps
- Matt black
- Nitrile rubber O-ring
Other options:
The EBUTOG can be installed with 2 x JAB-B (Just a Black Disc) one inside the cap and one inside the tube.
With an Near-Field Communication (NFC) enabled device the JAB-D can be used to store text, URL, links to files/video,make calls, send sms,
add a location/address,start navigation to a location, open street view at coordinates, information in case of emergency, Bitcoin address,
Bluetooth connection, configure a Wi-Fi network, sound controls and media, set display settings, manage the configuration on your device,
tasks from apps, phone features, file operations, compose an email,compose a tweet, open geolocation, open an address, turn on/off camera
flash (flashlight), vibrate, timestamp, talking clock, pop-up message, notification and more.
Technical Information:
- Protocol ISO 14443-3A NXP MIFARE Ultralight (Ultalight C) NTAG213
- Technologies available NfcA, MifareUltralight, Ndef
- ATQA 0x0044
- SAK 0x00
- Signature Valid (NXP Public Key)
- Operating frequency 13.56 MHz
- Size 50 /137 Bytes
- Writeable/re-writeable (100,000 cycles)
- Can be made Read-Only
- 32 Bit Password protection
- UID Ascii Mirroring
- 24 Bit counter
- Originality Signature
- Fast read option
- Transmission of the data with a baud rate of 106 kbit/s
- Operating distance up to 100 mm (depending on various parameters as e.g. field strength and antenna geometry)
- An intelligent anticollision function allows to operate more than one tag in the field simultaneously
- NDEF type 2 formatted during manufacture
- 137 characters available with NDEF formatting
- Undetectable with hand-held/walk-through metal detectors
Check to see if you have an NFC enabled mobile device/phone by touching the Cap on the back of your mobile device/phone to transmit/receive.
For Android, Blackberry and Windows devices you will find many applications (NFC Tools Pro, NFC Tasks) on Google Play.
The NFC antenna is located on the battery for some devices and may not be present on replacement batteries.
For iPhone 7 to X running IOS-11+...
Launch from the Cap, but you will have to use an application such as PROX NFC TAG that you can find on the Apple app store.
For iPhone Xs, Xs Max or Xr URL's will launch with no application (download an NFC Writer X to unlock iPhone's NFC)
The EBUTOG can also be supplied with the IWB Strap 3.1 to allow for various methods of carry and concealment options:
- 42 inch installed with a ergonomic breakaway safety connector for IWB (inside waistband) or neck carry.
- Braided poly outer
- Natural rubber core
- UV stabilised
- Ballistic-Striker-Bead®
18650/CR123 BATTERY LOCKER
Machined from a solid rod of engineering thermoplastic the 18650/CR123 Battery Locker has been precision engineered to provide the optimum internal dimensions
for a wide range of 18650 and CR123 lithium batteries.
The lanyard attachment allows for tethering to prevent loss and aid extraction from a pouch or bag.
The unique anti-roll design of the flat cap allows for single-handed operation.
-Wide operating temperature range (-40°C to 120°C)
-High strength
-Low friction
-Chemical resistant
-No hard edges
-100% non-metallic
-Water/Airtight
|
